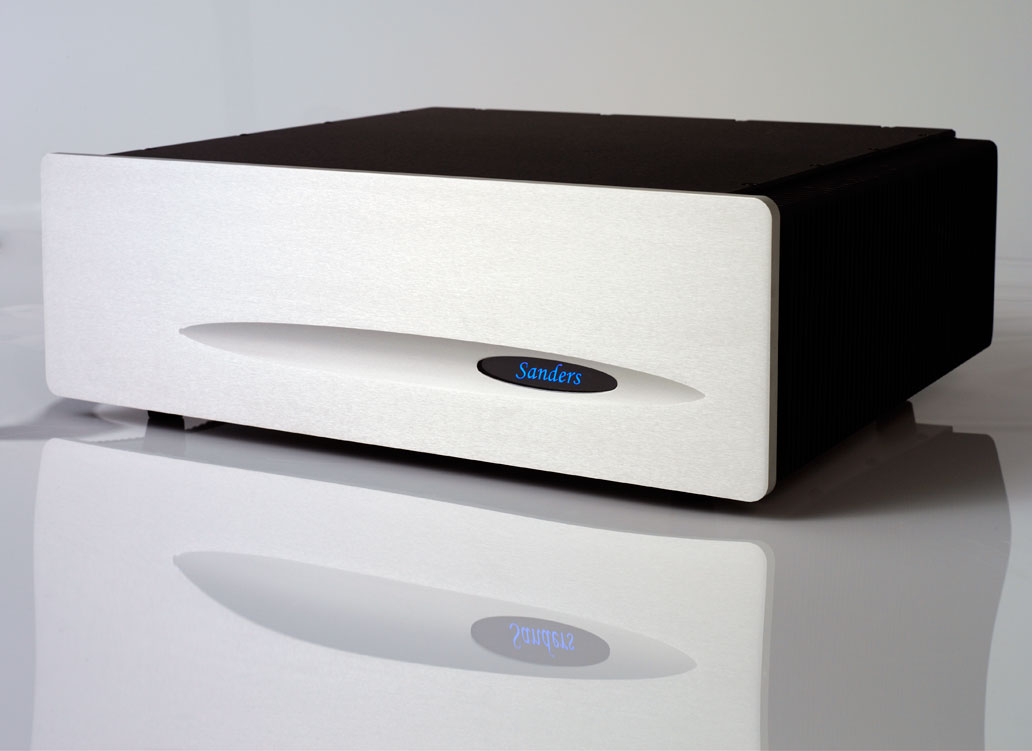

Magtech Monoblock Amplifier
Price: $11,000 Pair
The Sanders Sound Systems Magtech amp is now available as a Monoblock power amplifier. Performance is similar to the Magtech amplifier with the exception of dramatically increased power output capability! As with the Sanders Sound Systems Magtech amplifier, the Magtech Monoblock offers superb build quality, superlative sonics with extremely high output capability.
Magnetic speakers differ from electrostatic speakers in one fundamental way -- they require massive amounts of current and power. This causes the power supply voltages in an amplifier to change dramatically (typically by 30%) between idle and full power.
Electronics have their lowest distortion and optimum performance at a specific design voltage. If the voltage varies, the amplifier's performance will suffer.
An additional problem in amplifiers is that they require bias to eliminate crossover notch distortion and determine their class of operation. The bias will vary as the voltage does, which will further reduce performance.
An amplifier's voltage will fluctuate wildly as dynamic music is played. This causes the amplifier's distortion and bias to vary constantly and fail to meet its full performance potential.
As if all these problems are not enough, as an amplifier's voltage sags under load, the power it can deliver is greatly reduced. If the voltage would remain stable, the amplifier could produce much more power. Since most audiophile speaker systems require several hundred watts of power to avoid clipping and compression of the dynamic range, power is extremely important.
The main problem is heat. Amplifiers operate at much higher voltages and currents than line level source components. These higher voltages and currents forces conventional regulator designs to waste large amounts of energy, which wastes expensive electricity and causes the amplifier to get very hot.
Also, many regulator designs radiate RF (Radio Frequency) energy when switching high currents and voltages. This RF gets into the amplifier's electronics and can cause instability, oscillation, and noise. As a result of these problems, modern power amplifiers do not use regulated power supplies and fail to take advantage of the benefits available from doing so.
Sanders has solved these problems by developing a voltage regulator that is essentially 100% efficient. There is no heat dissipated by the regulator system. There is no high-power/high-voltage switching that causes heat generation or RF problems.
Unlike other amplifiers, the distortion in the Magtech amplifier is virtually unchanged regardless of power level. The bias is stable regardless of load.
The regulator makes it possible to obtain a 50% increase in power over the same amplifier operated unregulated. In its stereo form, the Magtech will deliver 1600 watts/channel into an 8 ohm load and 2000 watts/channel into a 4 ohm load.
The Magtech is built into the same chassis as the ESL Amp, so it is compact enough (17" wide, 5-1/2" tall, 14" deep) to place on a shelf or into a cabinet. It is also light enough (54 pounds) to be picked up. Like the ESL amp, it runs very cool and may be left on continually without concern for power usage.
SPECIFICATIONS OF MAGTECH MONOBLOCK AMPLIFIER
Power (Monoblock Version) 1600 watts RMS into an 8 ohm load Bandwidth DC through 100kHz Class of Operation Class AB Slew Rate 500 Volts/microsecond Input voltage required for full output 2 Volts Input Impedance 100kohm (both balanced and unbalanced) Gain 26dB Noise Nore than 110dB below rated output Damping Factor Greater than 600 into an 8 ohm load THD Less than 0.004%, 20 Hz - 20 KHz Voltage Voltage is user selectable for use world-wide. IMD Less than 0.003%, 20 Hz - 20 KHz Weight 55 pounds (25 Kgs) Dimensions 17" wide x 5.5" tall x 16" deep (43cm x 14cm x 40.6cm)
2000 watts RMS into a 4 ohm load
Power (Monoblock Version)
1600 watts RMS into an 8 ohm load
DC through 100kHz
Class of Operation
Input voltage required for full output
100kohm (both balanced and unbalanced)
Nore than 110dB below rated output
Greater than 600 into an 8 ohm load
Less than 0.004%, 20 Hz - 20 KHz
Voltage is user selectable for use world-wide.
Less than 0.003%, 20 Hz - 20 KHz
55 pounds (25 Kgs)
17" wide x 5.5" tall x 16" deep (43cm x 14cm x 40.6cm)
Speakers and Electronics are manufactured in Conifer, Colorado.
